OTB 4+8WSC-Huawei Ports and 28 Fusions | GFS-8SXH

FO-GFS-8SXH

New product

Optical Terminal Box (OTB). Ports: 4+8WSC-H | Diameter: < 16mm | Fusions: 28 | Trays/Fusions: 2x8 + 1x12 | Splitter PLC: 1:8/16 | Adapters: 8 WSC/APC SX | Dimensions: 319.3x200x97.5mm | Protection: IP65 | Application: Wall or Pole.

FO-GFS-8SXH

More details

25,20 € VAT excl.

Add to wishlist

Data sheet

Fiber Optic DistributionDistribution box PLC Out/Ind

More info

OTB 4+8SC Ports and 28 Fusions

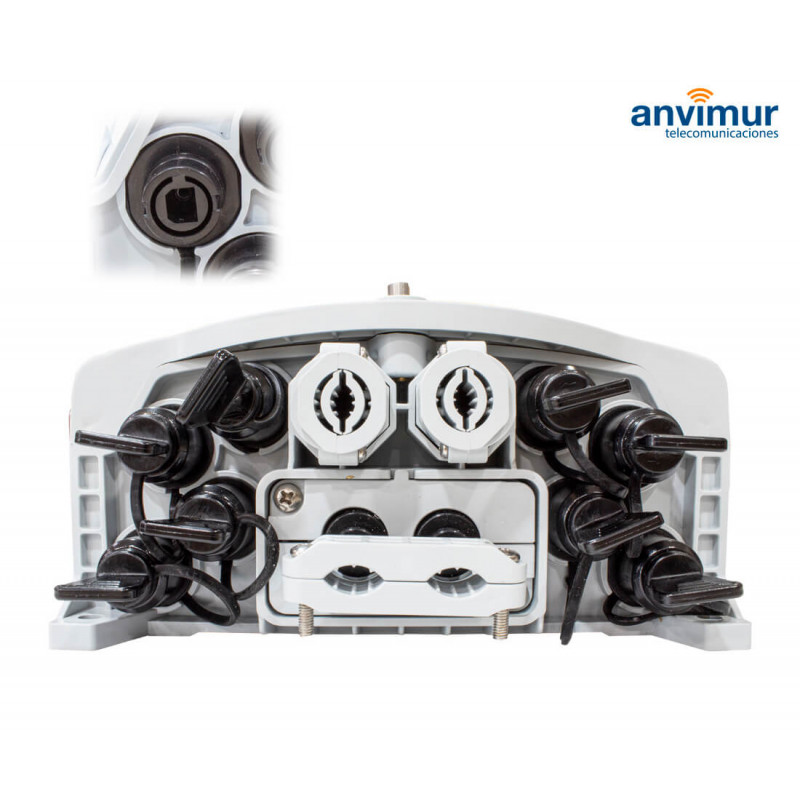

The Optical Terminal Box (OTB) has 4x Ø<16mm input/output ports + 8 ports for WSC/APC-Huawei SX Access Fast Connectors with watertight plugs (including 8 watertight WSC/APC-Huawei adaptors) for 28 splice fusions (2x trays for 8 fusions each, 1x tray for 12  fusions + 1x Splitter 1:8), PLC splitter can be installed. Can be installed on wall or post. Material is Grey PC+ABS, (RAL7035) with IP65 protection.

Specifications

ModelFO-GFS-8SXH
Nº Ports4 + 8 WSC/APC-Huawei SX
Diameter Ports< 16mm
Nº Fusions28
Trays / Fusions2x8 + 1x12
Splitter PLC1:8
Adapters SC8 watertight WSC/APC-H SX
Dimensions (mm)319.3x200x97.5
IP ProtectionIP65
ApplicationWall

(Including all installation accessories)

(DOES NOT INCLUDE PIGTAILS OR SPLITTER)

This closure may be installed with PLC Splitters.

“Choose the ones you need for your installation”
