OTB 4+16WSC-Huawei Ports and 40 Fusions | GFS-16SXH

FO-GFS-16SXH

New product

Optical Terminal Box (OTB). Ports: 4+16WSC/APC-Huawei | Diameter: < 16mm | Fusions: 40 | Trays/Fusions: 2x8 + 2x12 | Splitter PLC: 2x 1:8 | Adapters: 16 WSC/APC-Huawei SX | Dimensions: 319.3x214x133mm | Protection: IP65 | Application: Wall.

More details

29,24 € VAT excl.

Add to wishlist

Data sheet

Fiber Optic DistributionDistribution box PLC Out/Ind

More info

OTB 4+16WSC-Huawei Ports and 40 Fusions | GFS-16SXH

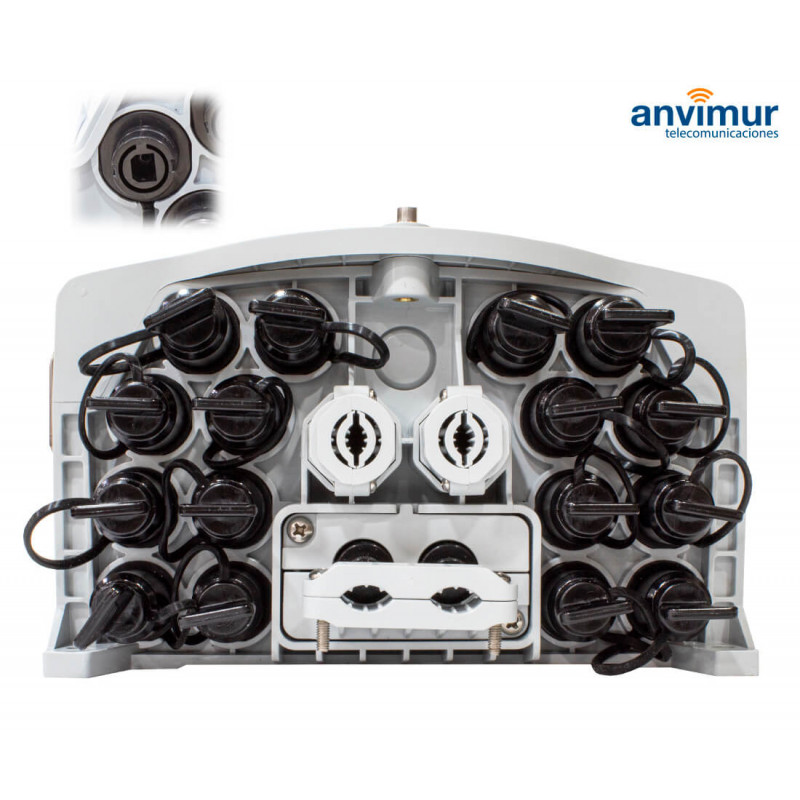

The Optical Terminal Box (OTB) has 4x Ø<16mm input/output ports + 16 ports for WSC/APC-Huawei Access Fast Connectors with watertight plugs (including 16 watertight WSC/APC Huawei adaptors) for 40 splice fusions (2x trays for 8 fusions each, 2x trays for 12  fusions + 1x Splitter 1:8 each), PLC splitter can be installed. Can be installed on wall. Material is Grey PC+ABS, (RAL7035) with IP65 protection.

Specifications

ModelFO-GFS-16SXH
Nº Ports4 + 16 WSC/APC-Huawei
Diameter Ports< 16mm
Nº Fusions40
Trays / Fusions2x8 + 2x12
Splitter PLC1:8
Adapters SC16 Waterproof WSC/APC-H SX
Dimensions (mm)319.3x214x133
IP ProtectionIP65
ApplicationWall

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)

This closure may be installed with PLC Splitters.

“Choose the ones you need for your installation”
