Power Supply for OLT, 48V 60A with Battery Output

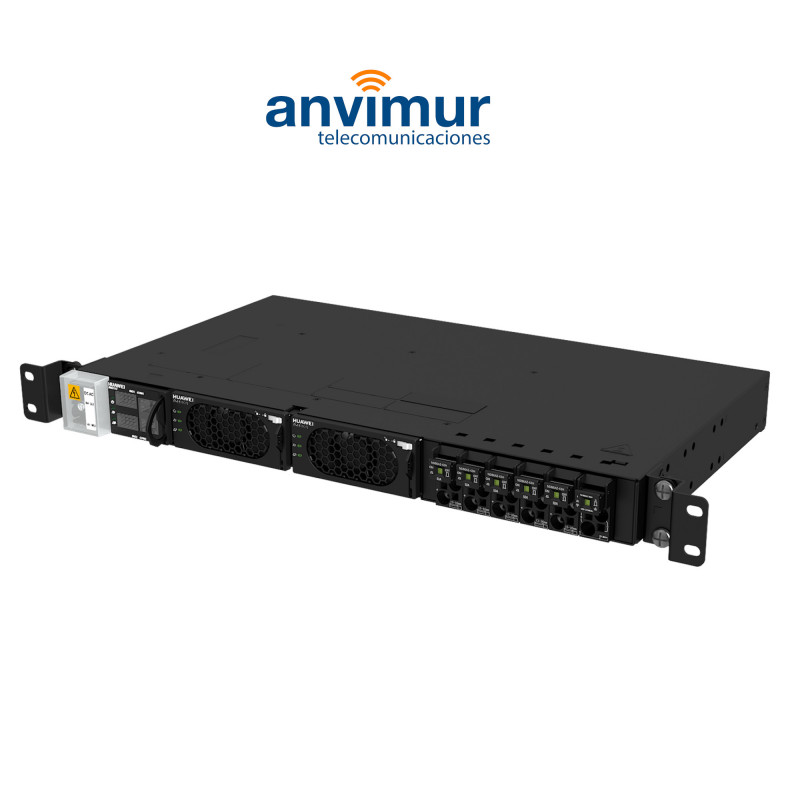

The ETP4860-B1 is an integrated AC/DC power system with excellent performance, including high energy efficiency, intelligent battery management, remote management, wide AC input voltage range, etc. The system can be configured with 2 pieces of 1U 15A rectifier modules and provides a rated current output of 30A. The ETP4860-B1 can be installed in a 19-inch rack or in a cabinet for external batteries.

Compatible with Huawei OLT.

Features

• Wide AC input voltage range from 85Vac to 300Vac.
• Wide rectifier operating temperature range from -40℃ to 65℃.
• Hot-swappable.
• Standard structural design, adaptable installation for 19/21 inches.
• Compact design (only 1U in height), saving space for the user.
• High rectifier efficiency, over 96%, helps save energy.
• Excellent rectifier standby function increases system efficiency.
• Intelligent battery management and protection help extend battery life.
• Supports environmental signal monitoring and remote management through dry contact, serial interface, or Ethernet interface.

Scenarios

• Access network.
• Transmission network.
• Enterprise communication network.

Technical Specifications
