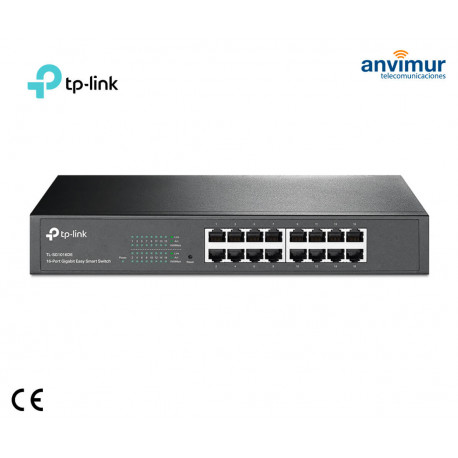

SG1016DE, 16-Port Gigabit Easy Smart Switch | TP-LINK

TL-SG1016DE

New product

TP-LINK 16 Gigabit ports switch Easy Smart. Easy to use, durable metal casing, traffic Prioritization, VLAN, Green Technology, Intelligent Management.

TL-SG1016DE

More details

76,84 € VAT excl.

Add to wishlist

Data sheet

Networking and WirelessSwitch

More info

SG1016DE, 16-Port Gigabit Easy Smart Switch | TP-LINK

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers Port Priority/802.1P Priority and DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save power consumption, making it an eco-friendly solution for your business network.

  • 16 10/100/1000Mbps RJ45 ports.
  • Provides network monitoring, traffic prioritization and VLAN features.
  • Green technology reduces power consumption.
  • Simple network set-up on top of plug-and-play connectivity.
  • Web-based user interface and management utility simplify configuration

Specifications

HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Physical Security LockNo
Power Supply100-240VAC, 50/60Hz
Dimensions ( W x D x H )11.6*7.1*1.7 in. (294*180*44 mm)
MountingRack Mountable
Max Power Consumption10.22W (220V/50Hz)
Max Heat Dissipation34.52 BTU/h
PERFORMANCE
Switching Capacity32Gbps
Packet Forwarding Rate23.8Mpps
MAC Address Table8K
Packet Buffer Memory4.1Mbit
Jumbo Frame10KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission MethodStore-And-Forward
OTHERS
CertificationFCC, CE, RoHS
Package ContentsTL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System RequirementsMicrosoft® Windows® for running Utility
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Downloads: Data Sheet, User Guide, ... here.
