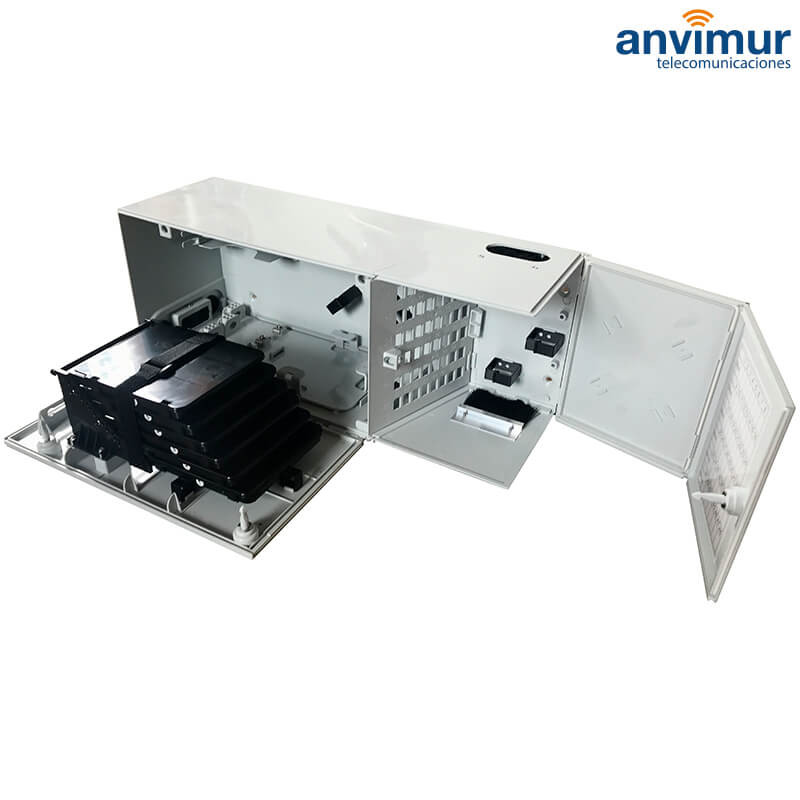

Multi-Operator Distribution Cabinet up to 48 subscribers | GFS48E

FO-GFS48E

New product

Termination Box. Approved. Ports: 4+2 | Diameter: < 20mm | Fusions: 48 | Trays/Fusions: 6x8 | Splitter MINI BOX: 1:8/16 | Adapters: 48 SC | Dimensions: 478x180x163 | Protection: IP54 | Application: FTTx – Wall.

FO-GFS48E

More details

40,00 €

Add to wishlist

Data sheet

Fiber Optic DistributionFiber Distribution Hub

More info

Multi-Operator Distribution Cabinet up to 48 subscribers | GFS48E

The Multi-Operator Box is a pooling module for splicing, coupling and stirring up to 48 optical fibers. The modules can be stacked to support configurations of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.

Termination Box. It has 4 input/output ports Ø<18mm + 2 drop cable ports, for 48 splice fusions (6 trays of 8 fusions each), 48 SC adaptors and capacity to house BOX MINI Splitter. Possibility to install on Wall. Plastic material and IP54 protection.

Specifications

ModelFO-GFS48E
Nº Ports4 + 2
Diameter Ports< 20mm
Nº Fusions48F
Trays / Fusions6 x 8
Splitter BOX
(1:8) (1:16) MINI
Adapters SC48
Dimensions (mm)478x180x163
IP ProtectionIP54
ApplicationFTTx – Wall

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)

This box may be installed with PLC Splitters.

“Choose the ones you need for your installation”

Splitter PLC BOX Mini 1:4 SC/APC

Splitter PLC BOX Mini 1:8 SC/APC

Splitter PLC BOX Mini 1:16 SC/APC

Characteristics:

  • Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system.
  • Possible scalability depending on the number of operators addressing the building.
  • Optical cable access left with lashing system.
  • Standardized dimensions, according to TELEFONICA recommendations.
  • Working temperature -40°C ~ +60°C (< 85% Relative Humidity).
  • Net Weight 3.2kg. Colour RAL7035.

Application:

Telecommunication area, Internet service, Data center, CATV and FTTH.
